Ammonia expander
Ammonia expander
Turbine and generator integrated design, equipped with high-speed permanent magnet synchronous generator, high efficiency to adapt to a wide range of working conditions. High speed double mechanical sealing system is adopted to prevent leakage of working medium. The two ends of the two-stage impeller are suspended symmetrically, the axial force is self-balanced, and the rotor dynamic performance is excellent. The overall layout adopts radial intake and axial exhaust, which is easy to install on site.

这里是标题一h1占位文字

Turbine type: Axial flow

Turbine type: Axial flow

Flow field simulation

Flow field simulation

Power/kW
Intake Pressure
Impeller form
Blade material
Dynamic balance level
Generator
Rotate Speed
Hz
Grid-connected speed range
Grid-connection frequency
Heat source application range
Supply Mode
Supply Range
12
2000kPa(A)
Centripetal
TC-4
G1.0
PMSG
1200RPM
400
7000-12000RPM
 　

50-60℃Dry hot rock ammonia gas
components set
All-in-one machine
50
2000kPa(A)
Centripetal
TC-4
G1.0
PMSG
1200RPM
400
7000-12000RPM
 　

50-60℃Dry hot rock ammonia gas
components set
All-in-one machine

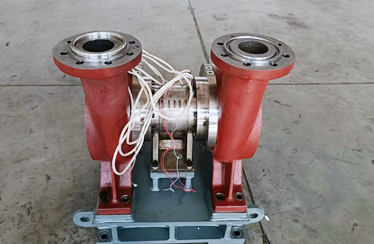

Host machine

Host machine

Host machine

Host machine

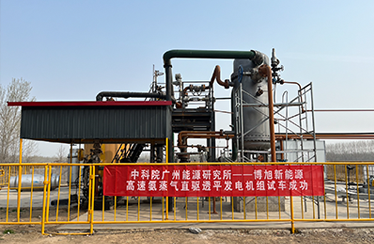

Project site

Project site
