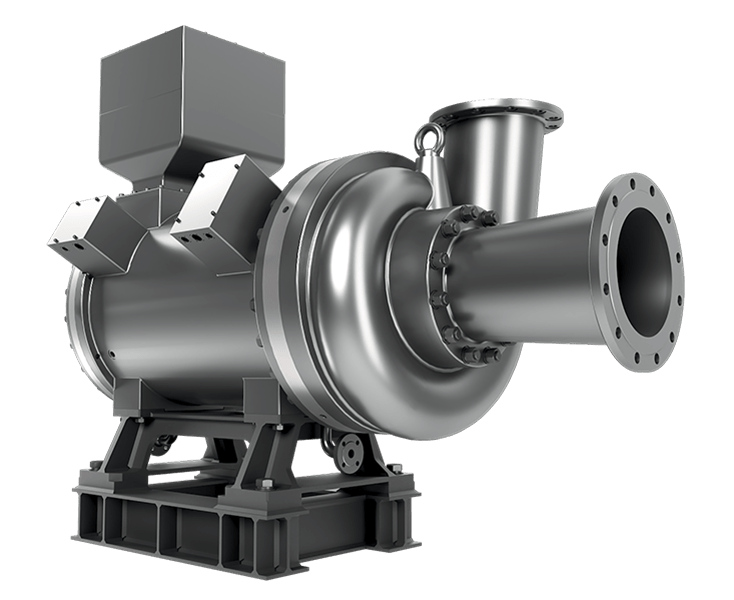

Centripetal magnetically levitated Turbine
Booming Industry ORC series products have the industrial pioneering technological and iteration advantages in China. This series of products adopt the integrated design of turbine and generator, the generator is a high-speed rare earth permanent magnet motor, the shell is a shielding body, there is no working fluid leakage point, the bearing uses magnetic levitation bearing, the working fluid is selected R245fa, natural explosion-proof and pollution-free. The use of multi-point control of the active magnetic bearing, stationary and rotating parts no physical contact, the whole process without wear, no lubrication, no mechanical contact, so that the rotor can run at high speed.
more
This is a low temperature and low pressure axial flow ORC turbine generation unit. Single cylinder structure, efficient reaction design, upward exhaust steam structure. Impeller adopts full pretorsion structure design.
more

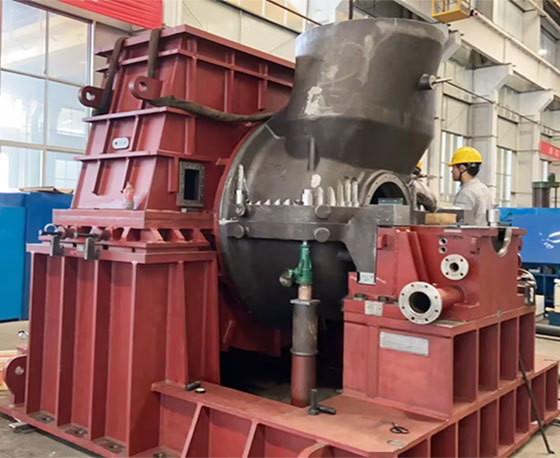

Corrosion resistant stainless steel low parameter steam turbine series
The unit is used for vacuum flash steam power generation in vaporization furnace, aiming at the low temperature of esterified steam and corrosion, the flow parts are made of corrosion-resistant stainless steel. The wet steam of any stage of the unit is controlled within a certain range, and the blade is specially designed to fully consider its strength and anti-cavitation ability. A trap is arranged at the bottom of each stage of the steam chamber, cylinder block and the lower part of the sealed pipe to discharge condensate to the trap expansion box for recovery.
more
Anti-corrosion and wear-resistant low parameter steam Turbine series
The unit is used for vacuum flash steam in vaporization furnace. According to the characteristics of negative pressure and large dust content of the steam, the wear-resistant anti-corrosion and anti-blocking negative pressure saturated steam turbine is specially designed, and it is equipped with anti-corrosion and dust-proof security device, high vacuum condenser, high vacuum device and vacuum pipeline.
more
Small type & high reaction fully pretwisted blade steam turbine
The unit is an ultra-low pressure saturated steam turbine, using a large number of low-pressure steam drag generator power generation, can obtain 2800~3300KW effective power saving space, help the development of circular economy, energy saving and emission reduction.
more
Turbine and generator integrated design, equipped with high-speed permanent magnet synchronous generator, high efficiency to adapt to a wide range of working conditions. High speed double mechanical sealing system is adopted to prevent leakage of working medium. The two ends of the two-stage impeller are suspended symmetrically, the axial force is self-balanced, and the rotor dynamic performance is excellent. The overall layout adopts radial intake and axial exhaust, which is easy to install on site.
more
