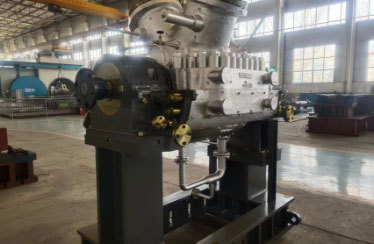

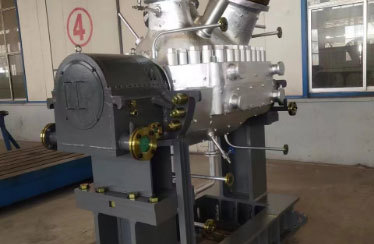

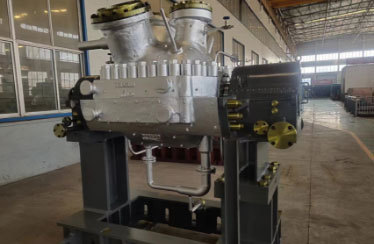

Reaction axial flow turbine

This is a low temperature and low pressure axial flow ORC turbine generation unit. Single cylinder structure, efficient reaction design, upward exhaust steam structure. Impeller adopts full pretorsion structure design.

这里是标题一h1占位文字

Turbine type: Axial flow

Flow Field Simulation

Power/kW	Intake Pressure	Impeller form	Dynamic balance level	Generator	Rotate Speed	Hz	Heat source application range	Supply Mode	Supply Range
2000	1524kPa(A)	High reaction/full torque	G1.0	asynchronization	3000	50Hz	120℃, 25t/h	Components set	Steam Turbine+generator+ Control System
3000	1566.3kPa(A)	High reaction/full torque	G1.0	asynchronization	3000	50Hz	120℃, 37.55t/h
6000	1729.5kPa(A)	High reaction/full torque	G1.0	asynchronization	3000	50Hz	128℃, 70.25t/h
10000*	1873.6kPa(A)	High reaction/full torque	G1.0	asynchronization	3000	50Hz	140℃, 112.5t/h
